| 起源の場所 | 中国 |
| ブランド名 | Kasugai |
| 証明 | ISO PED AD2000 |
| モデル番号 | ASTM A312 TP304/L ASME B36.10M WLD SS パイプ |
| 文書 | 製品説明書 PDF |

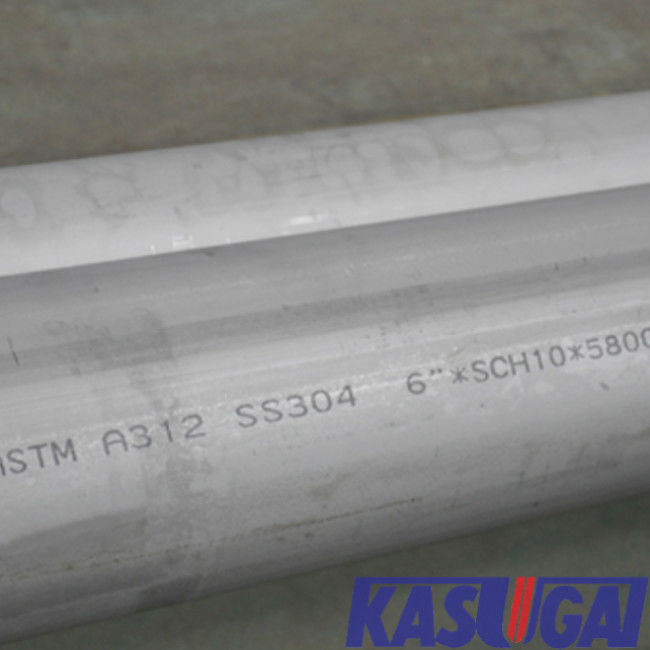

ASTM A312 TP304/L ASME B36.10Mはステンレス鋼の管を溶接した
指定:ASME B36.10Mは高いですか低温および圧力のために使用される溶接され、継ぎ目が無い細工した鋼管のための標準規格である。この標準はまたステンレス鋼のような他の鉄および非鉄合金から、ニッケルの、チタニウムのジルコニウム、タンタル、アルミニウムおよび銅、等なされる溶接され、継ぎ目が無い管のために広く使用される。すべての材料は対応するASTMまたはASMEの指定でカバーされる。
ASTM A312は継ぎ目が無い覆う、まっすぐ継ぎ目は溶接し、重く風邪は大口径が管を溶接したときに2つの縦断面図を溶接する溶接されたステンレス鋼の管を、割り当てられる働かせた
製品に関する情報
| 製品名 | ASTM A312 TP304/L ASME B36.10Mはステンレス鋼の管を溶接した |
| サイズの範囲 | 48"への1/8" |
| 標準 | ASTM A312 TP304/L |
| 壁厚さ | ASME B36.10Mに従って |
| 長さ | 6.096 m （20 ′）、12.19 m （40 ′）、6つのmおよびカスタマイズされる12のm |
| 終わりプロセス | 明白な端、斜めの端、通された端 |
| 点検及びテスト | 視覚検査、次元の点検、テスト、くねりテスト、渦電流テスト、エッチング テスト、レントゲン写真の検査（溶接された管のために）、粒界腐食テストを平らにするPMIの化学分析、抗張テスト（要望に応じて）。 |
標準及び材料:ASTM A312 TP304/L
304Lは低炭素の304オーステナイトのステンレス鋼、0.035%の適する広い応用範囲への優秀な耐食性を、ヨーロッパで超過しない炭素分同等の鋼鉄である1.4307である。
ASTM A312 TP304/Lの化学成分（%）
| 等級 | C | Si | Mn | Cr | NI | Mo | S | P |
| TP304 | 0,08 | 1,0 | 2.00 | 18.0 – 20.0 | 8.0 – 11.0 | – | 0,03 | 0,045 |
| TP304L | 0,035 | 1,0 | 2.00 | 18.0 – 20.0 | 8.0 – 13.0 | – | 0,03 | 0,045 |
ASTM A312の機械特性
| 等級 | UNS | 引張強さ 分、Ksi [MPa] |
降伏強さ 分、Ksi [MPa] |
| TP304 | S30400 | 75 [515] | 30 [205] |
| TP304L | S30403 | 70 [485] | 25 [170] |
ASME/ANSI B36.10Mのの次元溶接され、継ぎ目が無い細工した鋼管（mm）
| NPS | D | Sch5s | Sch10s | Sch10 | Sch20 | Sch30 | Sch40s | STD | Sch40 | Sch60 | Sch80s | XS | Sch80 | Sch100 | Sch120 | Sch140 | Sch160 | XXS |
| 1/8 | 10.3 | --- | 1.24 | --- | --- | --- | 1.73 | 1.73 | 1.73 | --- | 2.41 | 2.41 | 2.41 | --- | --- | --- | --- | --- |
| 1/4 | 13.7 | --- | 1.65 | --- | --- | --- | 2.24 | 2.24 | 2.24 | --- | 3.02 | 3.02 | 3.02 | --- | --- | --- | --- | --- |
| 3/8 | 17.1 | --- | 1.65 | --- | --- | --- | 2.31 | 2.31 | 2.31 | --- | 3.2 | 3.2 | 3.2 | --- | --- | --- | --- | --- |
| 1/2 | 21.3 | 1.65 | 2.11 | --- | --- | --- | 2.77 | 2.77 | 2.77 | --- | 3.73 | 3.73 | 3.73 | --- | --- | --- | 4.78 | 7.47 |
| 3/4 | 26.7 | 1.65 | 2.11 | --- | --- | --- | 2.87 | 2.87 | 2.87 | --- | 3.91 | 3.91 | 3.91 | --- | --- | --- | 5.56 | 7.82 |
| 1 | 33.4 | 1.65 | 2.77 | --- | --- | --- | 3.38 | 3.38 | 3.38 | --- | 4.55 | 4.55 | 4.55 | --- | --- | --- | 6.35 | 9.09 |
| 1つの¼ | 42.2 | 1.65 | 2.77 | --- | --- | --- | 3.56 | 3.56 | 3.56 | --- | 4.85 | 4.85 | 4.85 | --- | --- | --- | 6.35 | 9.7 |
| 1つの½ | 48.3 | 1.65 | 2.77 | --- | --- | --- | 3.68 | 3.68 | 3.68 | --- | 5.08 | 5.08 | 5.08 | --- | --- | --- | 7.14 | 10.15 |
| 2 | 60.3 | 1.65 | 2.77 | --- | --- | --- | 3.91 | 3.91 | 3.91 | --- | 5.54 | 5.54 | 5.54 | --- | --- | --- | 8.74 | 11.07 |
| 2 ½ | 73 | 2.11 | 3.05 | --- | --- | --- | 5.16 | 5.16 | 5.16 | --- | 7.01 | 7.01 | 7.01 | --- | --- | --- | 9.53 | 14.02 |
| 3 | 88.9 | 2.11 | 3.05 | --- | --- | --- | 5.49 | 5.49 | 5.49 | --- | 7.62 | 7.62 | 7.62 | --- | --- | --- | 11.13 | 15.24 |
| 3 ½ | 101.6 | 2.11 | 3.05 | --- | --- | --- | 5.74 | 5.74 | 5.74 | --- | 8.08 | 8.08 | 8.08 | --- | --- | --- | --- | --- |
| 4 | 114.3 | 2.11 | 3.05 | --- | --- | --- | 6.02 | 6.02 | 6.02 | --- | 8.56 | 8.56 | 8.56 | --- | 11.13 | --- | 13.49 | 17.12 |
| 5 | 141.3 | 2.77 | 3.4 | --- | --- | --- | 6.55 | 6.55 | 6.55 | --- | 9.53 | 9.53 | 9.53 | --- | 12.7 | --- | 15.88 | 19.05 |
| 6 | 168.3 | 2.77 | 3.4 | --- | --- | --- | 7.11 | 7.11 | 7.11 | --- | 10.97 | 10.97 | 10.97 | --- | 14.27 | --- | 18.26 | 21.95 |
| 8 | 219.1 | 2.77 | 3.76 | --- | 6.35 | 7.04 | 8.18 | 8.18 | 8.18 | 10.31 | 12.7 | 12.7 | 12.7 | 15.09 | 18.26 | 20.62 | 23.01 | 22.23 |
| 10 | 273.1 | 3.4 | 4.19 | --- | 6.35 | 7.8 | 9.27 | 9.27 | 9.27 | 12.7 | 12.7 | 12.7 | 15.09 | 18.26 | 25.4 | 28.58 | 25.4 | 25.4 |
| 12 | 323.9 | 3.96 | 4.57 | --- | 6.35 | 8.38 | 9.53 | 9.53 | 10.31 | 14.27 | 12.7 | 12.7 | 17.48 | 21.44 | 25.4 | 28.58 | 33.32 | 25.4 |
| 14 | 355.6 | 3.96 | 4.78 | 6.35 | 7.92 | 9.53 | --- | 9.53 | 11.13 | 15.09 | --- | 12.7 | 19.05 | 23.83 | 27.79 | 31.75 | 35.71 | |
| 16 | 406.4 | 4.19 | 4.78 | 6.35 | 7.92 | 9.53 | --- | 9.53 | 12.7 | 16.66 | --- | 12.7 | 21.44 | 26.19 | 30.96 | 36.53 | 40.49 | |
| 18 | 457.2 | 4.19 | 4.78 | 6.35 | 7.92 | 11.13 | --- | 9.53 | 14.27 | 19.05 | --- | 12.7 | 23.83 | 29.36 | 34.93 | 39.67 | 45.24 | |
| 20 | 508 | 4.78 | 5.54 | 6.35 | 9.53 | 12.7 | --- | 9.53 | 15.09 | 20.62 | --- | 12.7 | 26.19 | 32.54 | 38.1 | 44.45 | 50.01 | |
| 22 | 558.8 | 4.78 | 5.54 | 6.35 | 9.53 | 12.7 | --- | 9.53 | --- | 22.23 | --- | 12.7 | 28.58 | 34.93 | 41.28 | 47.63 | 53.98 | |
| 26 | 660.4 | --- | --- | 7.92 | 12.7 | --- | --- | 9.53 | --- | --- | --- | 12.7 | ||||||
| 28 | 711.2 | --- | --- | 7.92 | 12.7 | 15.88 | --- | 9.53 | --- | --- | --- | 12.7 | ||||||
| 30 | 762 | 6.35 | 7.92 | 7.92 | 12.7 | 15.88 | --- | 9.53 | --- | --- | --- | 12.7 | ||||||
| 32 | 812.8 | --- | --- | 7.92 | 12.7 | 15.88 | 17.48 | 9.53 | 17.48 | --- | --- | 12.7 | ||||||
| 34 | 863.6 | --- | --- | 7.92 | 12.7 | 15.88 | 17.48 | 9.53 | 17.48 | --- | --- | 12.7 | ||||||
| 36 | 914.4 | --- | --- | 7.92 | 12.7 | 15.88 | 19.05 | 9.53 | 19.05 | --- | --- | 12.7 | ||||||
| 38 | 965.2 | --- | --- | --- | --- | --- | --- | 9.53 | --- | --- | --- | 12.7 | ||||||
| 40 | 1016 | --- | --- | --- | --- | --- | --- | 9.53 | --- | --- | --- | 12.7 | ||||||
| 42 | 1066.8 | --- | --- | --- | --- | --- | --- | 9.53 | --- | --- | --- | 12.7 | ||||||
| 44 | 1117.6 | --- | --- | --- | --- | --- | --- | 9.53 | --- | --- | --- | 12.7 | ||||||
| 46 | 1168.4 | --- | --- | --- | --- | --- | --- | 9.53 | --- | --- | --- | 12.7 | ||||||
| 48 | 1219.2 | --- | --- | --- | --- | --- | --- | 9.53 | --- | --- | --- | 12.7 |
